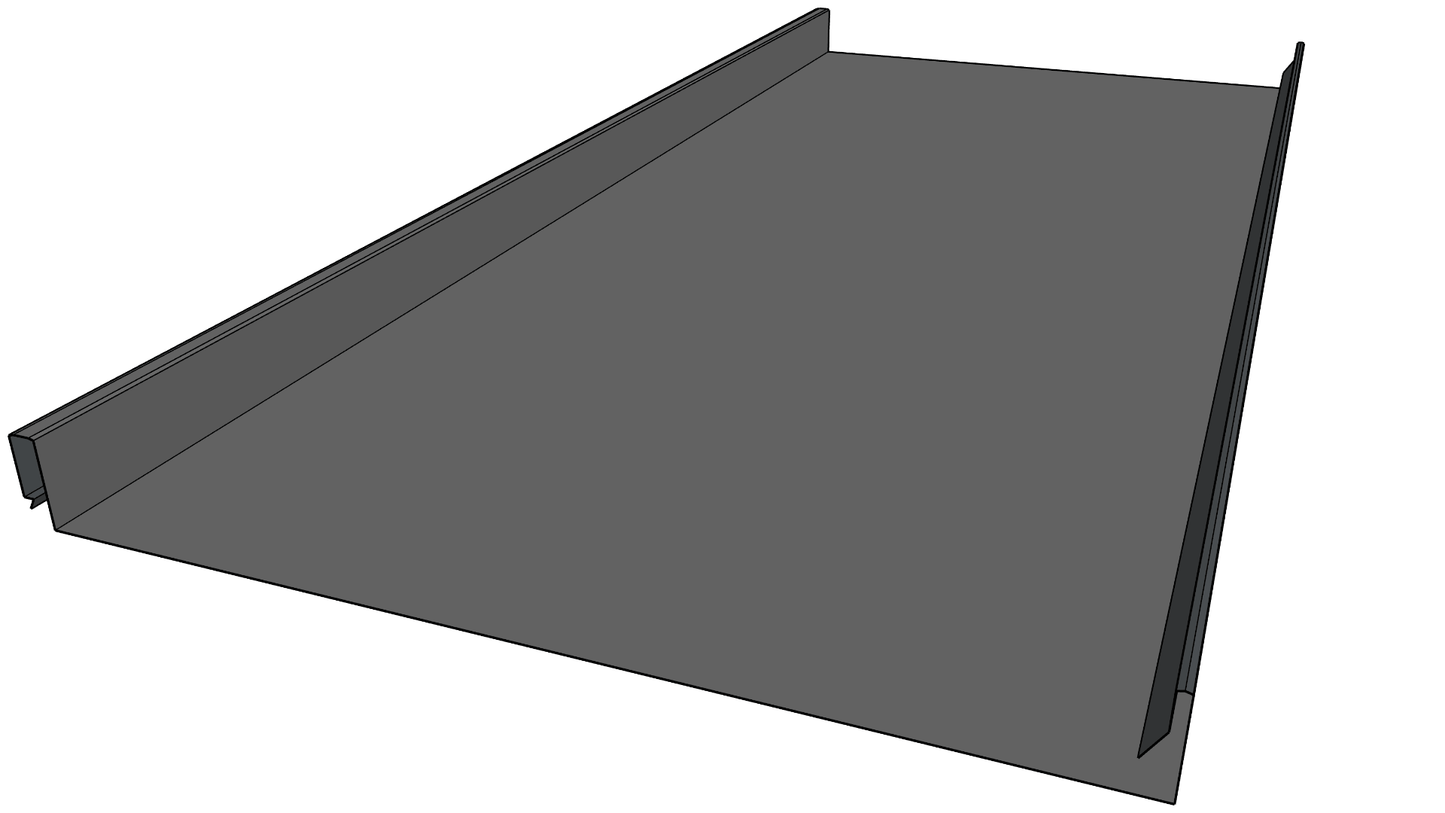

COLORBOND® Standing Seam Cladding
Architecturally striking standing seam cladding made in Australia from COLORBOND® steel. Featuring an innovative snap locking design and contemporary standing seam profile to blend well with modern and traditional building facades.
Suitable for both roofing and walling applications and available in a wide range of colours and finishes from COLORBOND® including their Classic, Matt and COLORBOND® Ultra steel range.
All orders are cut to size with flexible length and cover width options.
SPECIFICATIONS
SPECIFICATIONS

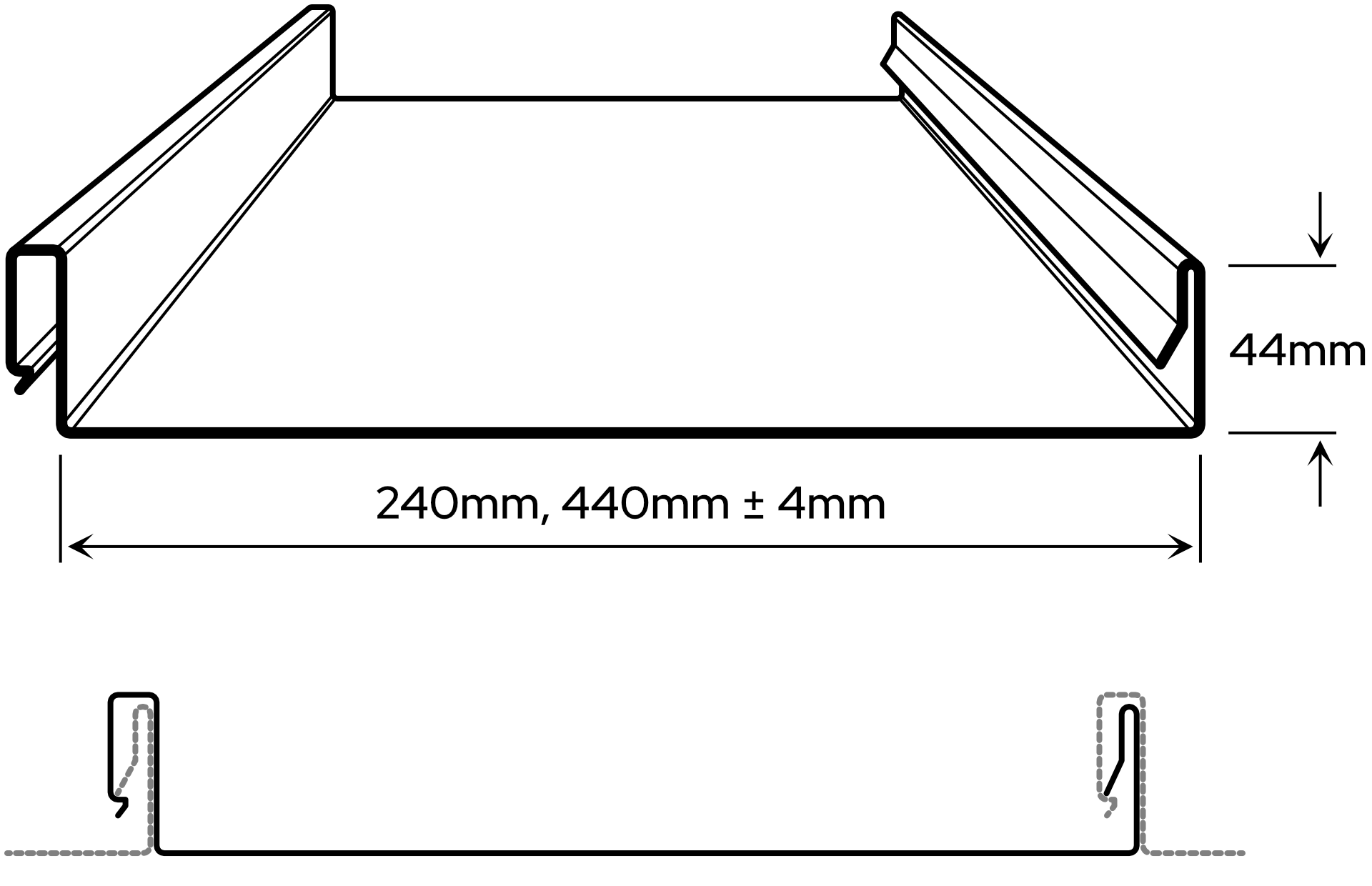

COVER WIDTH
240mm, 440mm ± 4mm
Custom coverage upon request 150mm to 500mm
RIB HEIGHT
44mm
MATERIAL GAUGE
0.55 BMT
MAXIMUM LENGTH
9m up to 30m
Orders are cut to size subject to transport limitations
MINIMUM ROOF PITCH
3 degrees
Roofing applications only
YIELD STRENGTH
550 (G550)
